| ブランド名: | LIGHT-BO |
| モデル番号: | LB20281LC3B-D |
| MOQ: | 1000pcs |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給能力: | 100000pcs/日 |

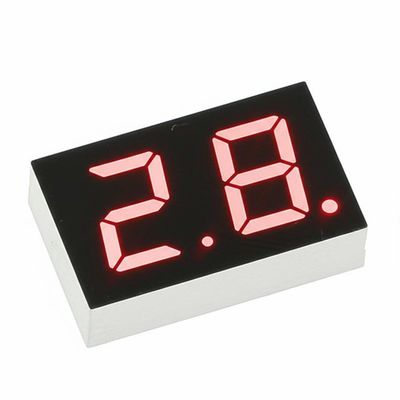

2 Digit 7 Segment LED Display with common cathode configuration, designed for home appliances and industrial applications.
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (3 sec) | Th | 260 | ºC |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage (Per dice) | Vf | If=20mA | 2.8 | 3.2 | V | |
| Reverse Voltage (Per dice) | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity (Per dice) | Iv | If=20mA | 100 | 140 | mcd | |
| Spectrum Width Of Half Value | λ | If=20mA | 20 | nm | ||
| Color Temperature | If=20mA | 6000 | 6500 | K |
LED working lifetime: 100,000hrs (Absolute Maximum Rating at Ta=25ºC)
