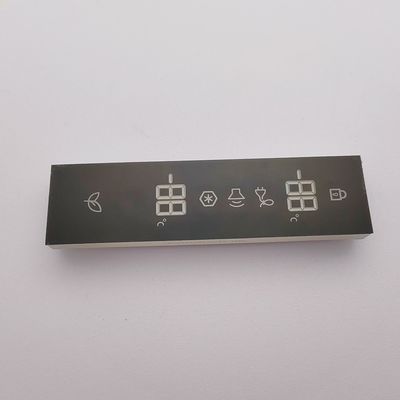

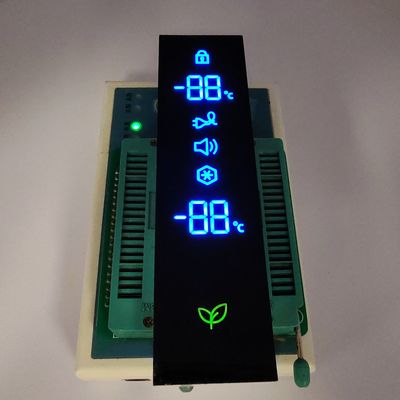

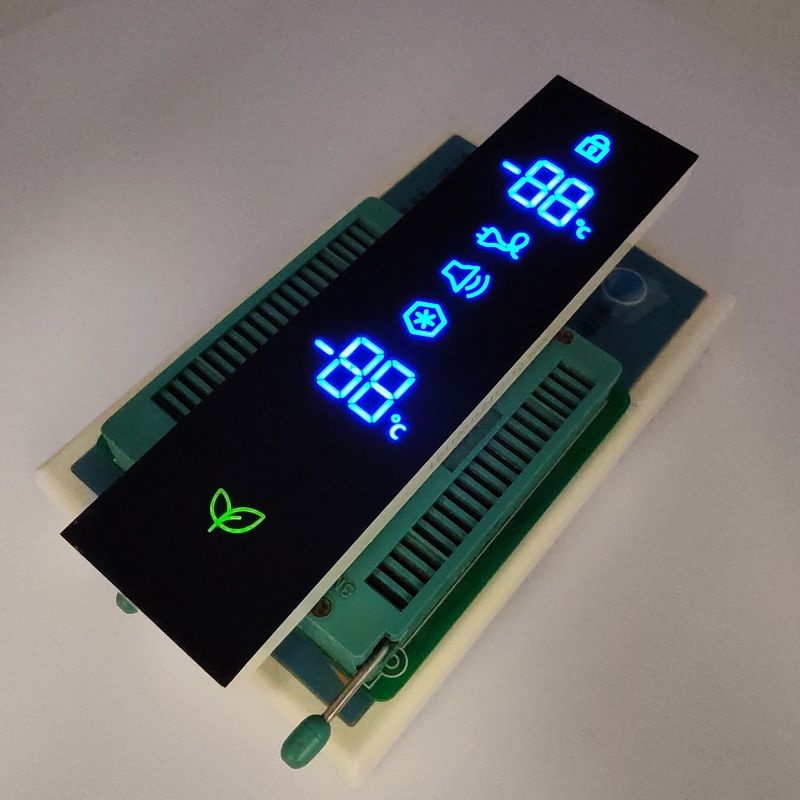

| ブランド名: | LIGHTBO |
| モデル番号: | LB11931IBJ1S-T2 |
| MOQ: | 1000 |
| 価格: | Negotiate |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給能力: | 20000個/日 |
| Specification Item | Details | Notes / Options |
|---|---|---|

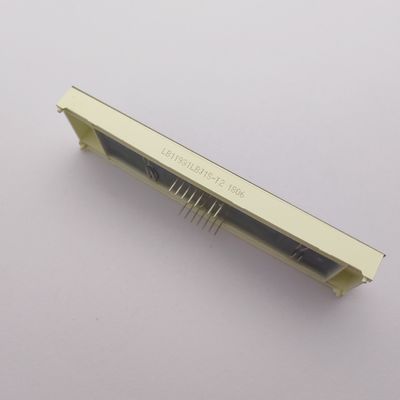

| Part Numbering | LB11931IBJ1S-T2 | Custom part number printing supported |
| Standard Color | Ultra Blue/Green | White, Blue, Pure Green, Yellow-Green, Orange, etc. |
| Polarity | Common Cathode | Common Anode |
| Lifespan | >80,000 hours | |
| Free Samples | Available | |
| Sample Lead Time | 5-7 working days | Tooling samples: 15-20 working days |
| Production Lead Time | 15-20 working days | Varies with order quantity |
| OEM/ODM Services | Supported | Based on customer's drawing or idea |
| LOGO Printing | Supported | Based on customer's drawing or idea |
| Minimum Order Quantity (MOQ) | 1,000 PCS | 100-500 PCS acceptable for initial trial orders |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
|---|---|---|---|
| EDT (days) | 5 | 15 | pending |
Shenzhen Guangzhibao Technology Co., Ltd. (Brand: LIGHT-BO) was established in 2006, A company that integrates R & D, manufacturing and sales of optoelectronics LED display. Our products include: 7 Segment LED Display, Alphanumeric LED Display, DOT Matrix LED Display, LED Backlight, Through Hole LEDs, SMD LEDs and so on. With features of low cost, low power consumption, long lifetime, stable performance, our products are widely used for home appliances (especially kitchen home appliances like oven, hood, refrigerator/freezer, etc.) and instrument panels (temperature, humidity, counter, process, etc.).
A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.
A: Our main products include 7-segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through-hole LEDs, SMD LEDs, LED backlights, and so on.
