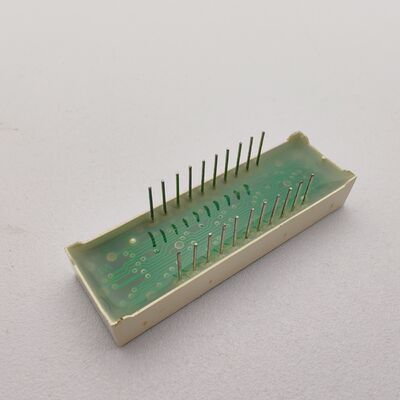

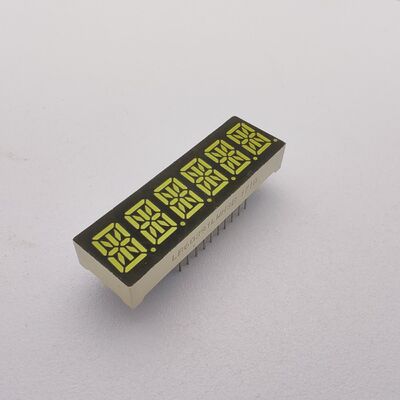

Ultra-Bright White 14-Segment LED Display (6-Digit, for Instrument Panels)

Name: Ultra-Bright White 14-Segment LED Display (6-Digit, for Instrument Panels)
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB60391LWH3B
Price: 9.20 USD
Availability: InStock

ブランド名:	LIGHT-BO
モデル番号:	LB60391LWH3B
MOQ:	1000
価格:	Negotiate
支払条件:	T/T、ウェスタンユニオン
供給能力:	20000個/日

詳細情報

製品説明

詳細情報

起源の場所:

中国、深セン

証明:

ISO9001&RoHS

ドキュメント:

LB60391-L-I (LB60401AB) 202...20.pdf

チューブチップの色:

超明るい白

順電圧:

2.8-3.2V/LED

ディスプレイ型:

コモンカソード

波長:

460-465NM

明るい強度:

120〜140mcd

半値のスペクトル:

20nm

パッケージの詳細:

EPE+カートン

供給の能力:

20000個/日

ハイライト:

14-segment LED display for instrument panels

6-digit alphanumeric LED display

ultra-bright white LED display

製品説明

Ultra-Bright White 14-Segment LED Display (6-Digit, for Instrument Panels)

Product Overview

High-performance 6-digit LED display designed for instrument panels with ultra-bright white illumination and excellent readability.

Specification	Details	Options
Part Number	LB60391LWH3B	Custom part number printing supported
Digit Number	6-digit	Available in 2, 3, 4, 5, or 6 digits
Digit Height	10mm	Various sizes: 0.25", 0.36", 0.39"... up to 5.0"
Color	Ultra-Bright White	White, Blue, Pure Green, Yellow-Green, Orange, etc.
Dimensions (LWH)	49 * 15 * 8mm	Other dimensions supported
Polarity	Common Anode	Common Cathode available
Lifespan	80,000 hours	-
Free Samples	Available	Tooling samples require 15-20 working days
Sample Lead Time	5-7 working days (standard)	Tooling samples: 15-20 working days
Production Lead Time	15-20 working days	May vary based on order quantity
OEM/ODM Support	Yes	Based on customer drawings or concepts
LOGO Printing	Supported	Per customer design
MOQ	1,000 pcs	First-order MOQ can be 100-500 pcs

Key Features

High Efficiency & Low Consumption: Operates at low forward voltage to achieve high brightness with minimal power and current draw
Superior Optical Quality: Provides uniform luminance distribution across all display segments
Robust & Reliable Design: Features industry-standard size ensuring stable performance and excellent readability in bright ambient light
Longevity & Compliance: Extended operational lifetime and meets RoHS/REACH environmental standards

Technical Specifications

Yellow Green (Code: J/JU)

Infuse your displays with a mesmerizing array of dynamic and vivid colors. Each hue is meticulously crafted to seamlessly align with your unique design preferences.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Create displays that are both inviting and attention-grabbing with this warm, cozy hue that exudes an inviting glow.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Infuse your visual displays with an electrifying energy and excitement using our striking, vibrant orange hue.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Immerse yourself in the captivating radiance of this vibrant color, perfect for crafting displays that command attention.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Enhance your display's impact with this intensely luminous red that delivers unmatched visibility and striking presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Opt for this refreshing, crisp green to create designs that align effortlessly with eco-friendly themes.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Revitalize your displays with this cool, vibrant blue hue that offers a refreshing and modern aesthetic.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Achieve unparalleled clarity and sophistication with this pristine white that elevates your display to new levels of brilliance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Robust performance attributes that underscore the superior capabilities of our cutting-edge LED display technology.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) stands as a beacon of excellence in OEM and ODM services since 2006. With ISO 9001:2015 certification, our legacy of over 15 years is a testament to our relentless pursuit of innovation and unparalleled quality.

LIGHTBO empowers its clients with premier, budget-friendly custom solutions that significantly reduce expenses while enhancing competitive advantages in the dynamic global marketplace.

Applications

Our selection of displays, including the cutting-edge 7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display, lead the industry in innovation and elegant design. These displays effortlessly integrate into a multitude of applications, significantly enhancing functionality and aesthetic appeal. Whether you're revolutionizing home appliances, delivering precise temperature and humidity readings, or engineering durable solutions for refrigerator controllers, thermostats, and HVAC systems, our products embody unparalleled performance and exceptional quality.

Certifications

Office and Factory Overview

Shipping Methods

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to any one else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
